Macadamia Sprinkler

An innovative upside down SuperNet™ UD sprinkler designed to optimises water coverage while working in harmony with production machinery.

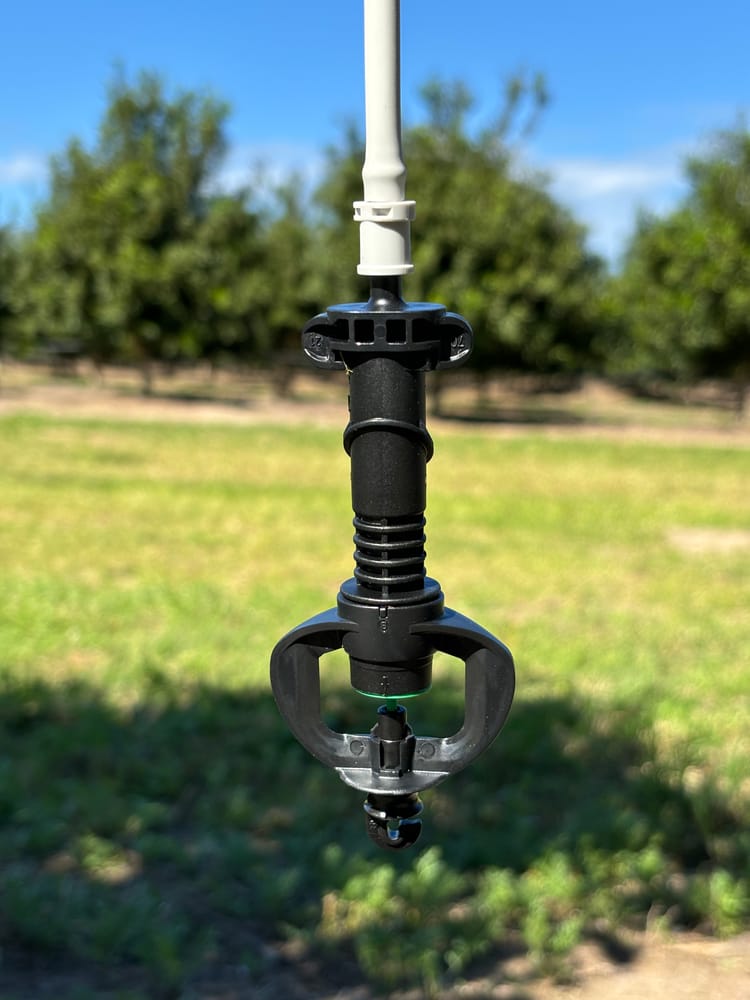

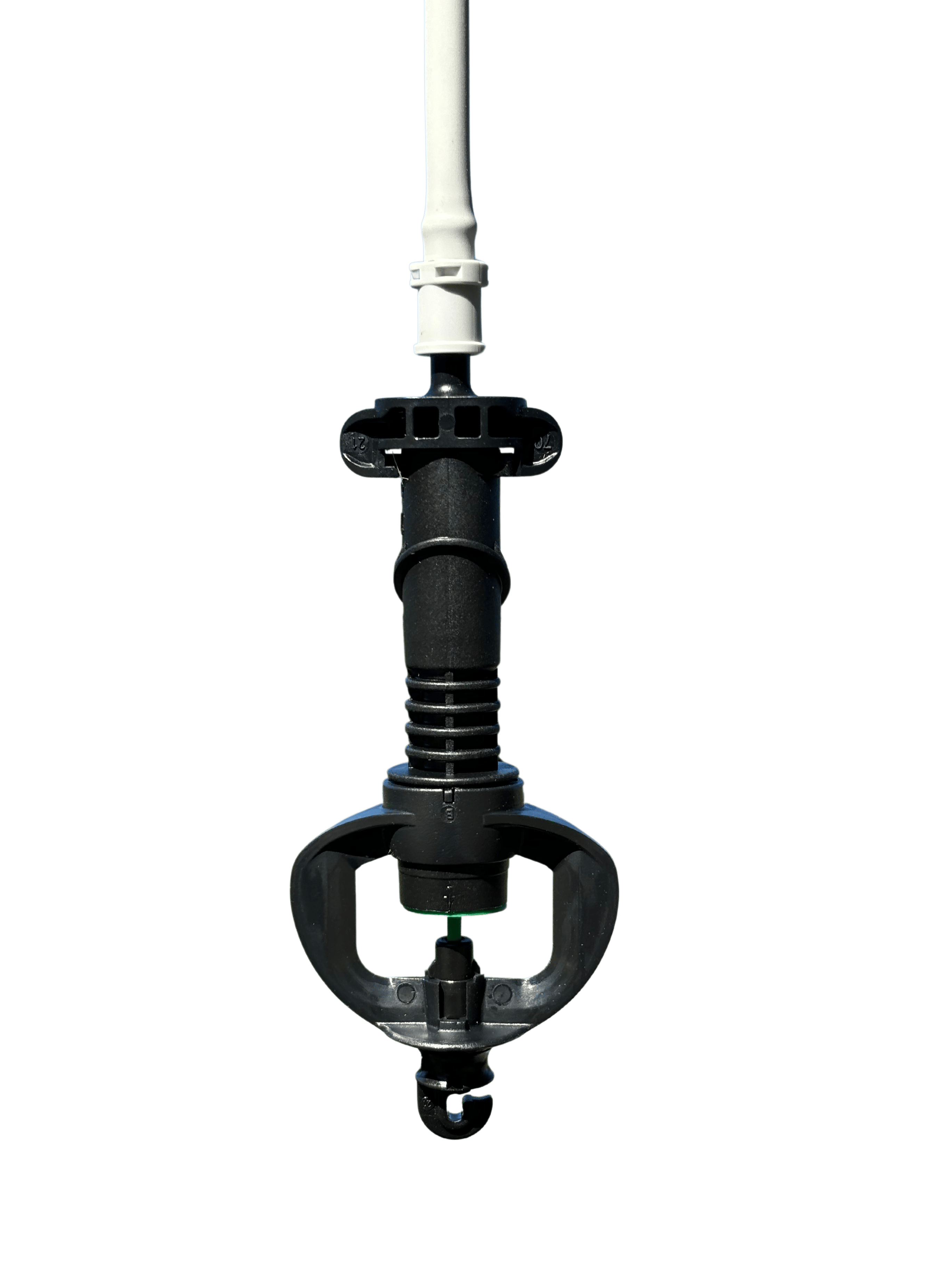

Featuring a unique “upside down” design, the Macadamia Sprinkler is a pressure compensated micro-sprinkler engineered to work suspended, so you can achieve optimum uniform water coverage, minimizing interference from farm operations, harvesters and other field machinery.

“Upside down” mounted sprinklers keep the ground clear, preventing sprinkler damage by field machinery.
Unique designed swivel ensures a flat throw pattern optimizing water coverage, significantly reducing misting and helping to safeguard your crops against fungal infections.

Why Macadamia Sprinkler?

Pressure compensating : Ensures every tree gets an even measure of water and nutrients, no matter the sprinkler's inlet pressure (within specific pressure ranges)
Improved distribution pattern: Enhanced vertical hanging for improved droplet uniformity and distribution
Low-impact installation and maintenance: Reduced time and labour costs, allowing resources to flow back into your business
Quality Accessories: A unique sprinkler dropper designed to ensure a flat trajectory
Machinery-safe: Unique“upside down” rotor enables sprinklers to be operated in a hanging position, preventing damage caused by field machinery.
Clogging resistance: Water passage - 30% larger than industry standard - protects against clogging to ensure an optimal water pattern, year after year.
Insect-protected, even upside down: Specially designed spring bearing ensures the anti-ant mechanism can prevent insect penetration to the nozzle, even when the sprinkler is mounted from a suspended LDPE/lateral .
Long-lasting: Thanks to a simple modular and clog-resistant design.
In-field resilience: Manufactured from tough plastic materials that can withstand agrochemicals, fertilizers, and sun exposure.
ISO 8026 standards: SuperNet™ micro-sprinklers meet ISO 8026 standards (SI 1406) with production certified by the SII.

Specifications

Flow rates: 50, 70 l/h (other flow rates available)
Recommended working pressure: 1.5 to 4.0 bar
2 types of upper bearing available: Upper bearing keeps the anti-ant feature even when sprinkler is mounted upside down; Spring bearing with Everspin™ offers wear resistance in harsh water conditions.
Self correcting: Specifically designed dropper to facilitate self-correcting in field
