WST Water Meter
WST Water Meters

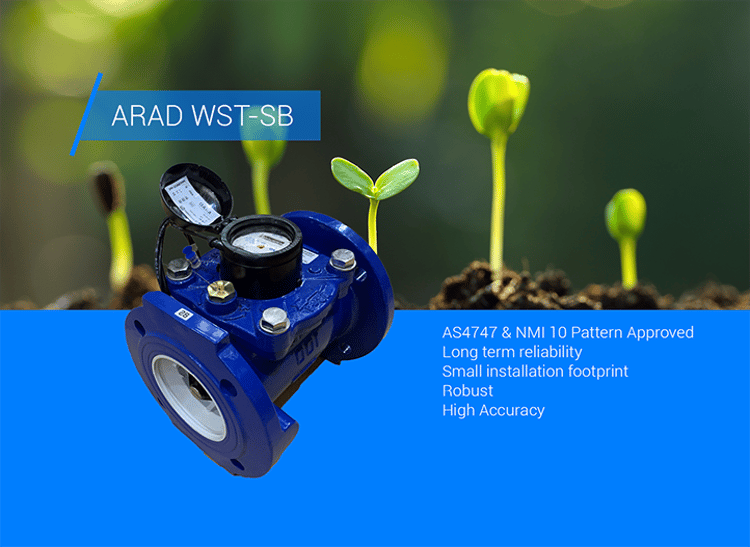

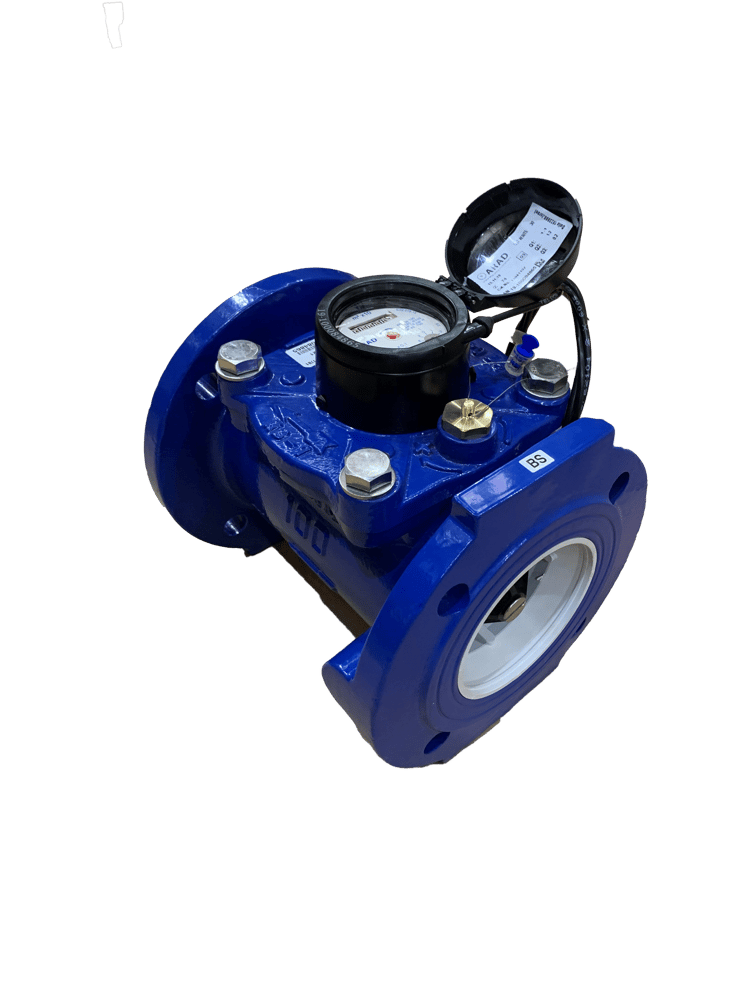

Pattern Approved ARAD WST (Woltman Silver Turbo) Water Meters for the ultimate reliability and accuracy
Pattern Approved WST Water Meters
The Arad Woltman Silver Turbo - WST implements advanced methods and technologies to deliver a robust, accurate and reliable water meters. Pattern approved this meter is a must have for installations requiring Murray Darling Basin Pattern Approvals.
Also available with Bayonet configuration.
APPLICATIONS
Utilities, Waterworks, Industrial and Agricultural applications
AVAILABLE SIZES
DN50 - DN300 (2”-12”) with cast iron body
Technical Specifications
- Pattern Approved for the Murray Darling Basin
- The Woltman Silver Turbo (WST) has a wide measuring rate that enables it to serve in broad applications and in extreme situations (low flows and high flows).
- Not sensitive to tough working conditions like vibrations.
- Resistant humidity conditions (even if dry chamber is full of water).
- The worm assembly is available in a separate kit, which enables easy replacement if necessary.
- Resistance – bearings and materials used in the WST are proven to ensure long life expectancy.
- Magnetic Coupling – the WST has a unique measuring unit, with only one moving element in contact with water, and has repelling magnets installed in the impeller and the transmitting gear, instead of the attracting magnets installed in the WT.
- The implementation of oil and sliding bearing (SB) further enhances the WST's durability.
- Also available with EV, EF, Dialog 3G, MPE, DPE etc.
Looking to learn more about WST's performance, dimensions and benefits?
Downloads
Downloads
contact us
Need help finding the best water meter solution?
Get in touch, and we’ll be happy to talk about your metering requirements
