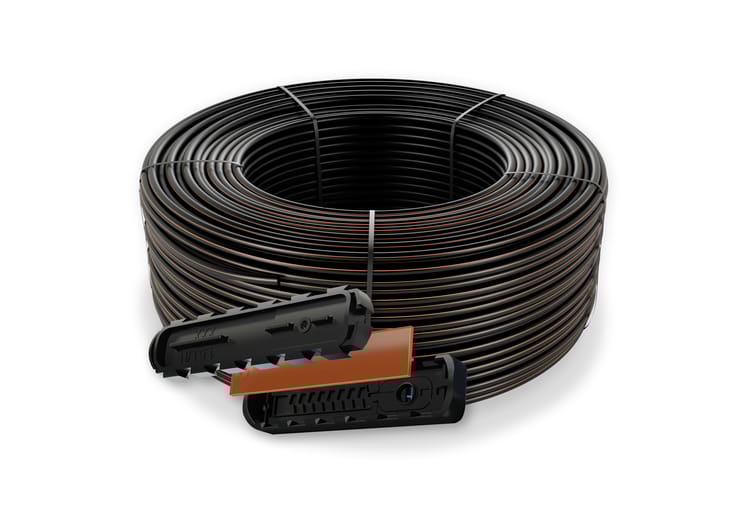

UniRam™ HCNL

Ideal for pulse irrigation of greenhouses, soilless cultures, and orchards with steep terrain where high shut-off pressure is required

Featuring a unique high-pressure Non-Leakage (HCNL) mechanism, UniRam™ HCNL integral pressure compensated, self-cleaning dripperline enable precise irrigation in high-gradient topography - assuring uniform yields year after year.

Prevents surplus water in low areas and eliminates system filling and draining times even in areas with steep slopes
Enables mixing and circulation of water and fertilisers in system prior to irrigation start

Expected Product Lifespan

15 to 25 Years

Topography

Flat Topography
Hilly Topography

Dripper Type

Integral

Pressure Compensation

dripperline wall-thickness

Heavy wall

Dripper special features

Anti Drain (CNL)
Anti Syphon (AS)

Surface

SDI (subsurface drip irrigation)
On surface

Crop type

Orchards
Protected crops

Why UniRam™ HCNL?

Strong Non-leakage: HCNL mechanism lets you install non-leakage systems in areas with steep slopes, where high shut-off pressure is required - avoiding flooding of the lower parts of your field
Better water and nutrient preparation: HCNL mechanism allows water and fertilizers to mix and circulate in the system prior to irrigation.
Anti-clogging protection: Anti-Siphon mechanism prevents suction of dirt and contaminants into the dripline during system draining - eliminating the risk of clogging or partial clogging.

Specifications

Variety of flow rates: 5 different flow rates (0.85, 1.25, 2.0, 2.9, 4.4 L/H) can address any condition or application
HCNL range: 1.5 - 4.0 bar
Wide range of pipe diameters: 16.0 - 23.0 mm
Wall thickness: 0.9mm, 1.0mm, 1.2mm
Superb UV and chemical resistance
