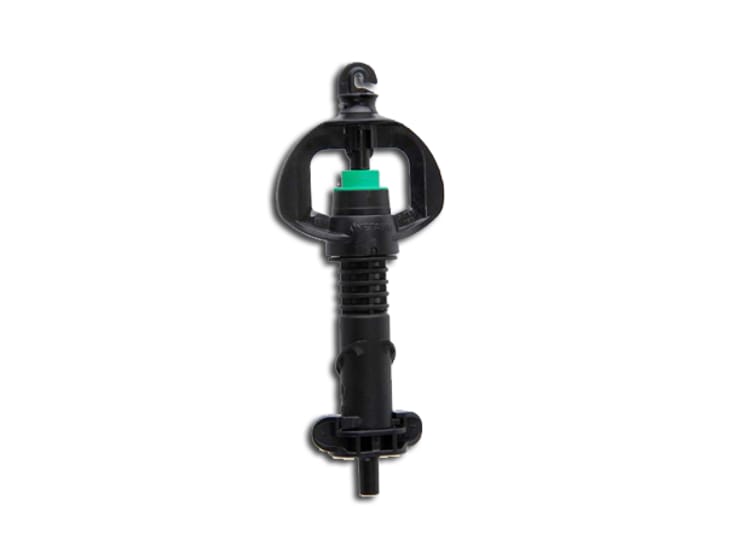

SuperNet™ UD

Upside-down sprinkler for orchards that works in harmony with harvesting machinery

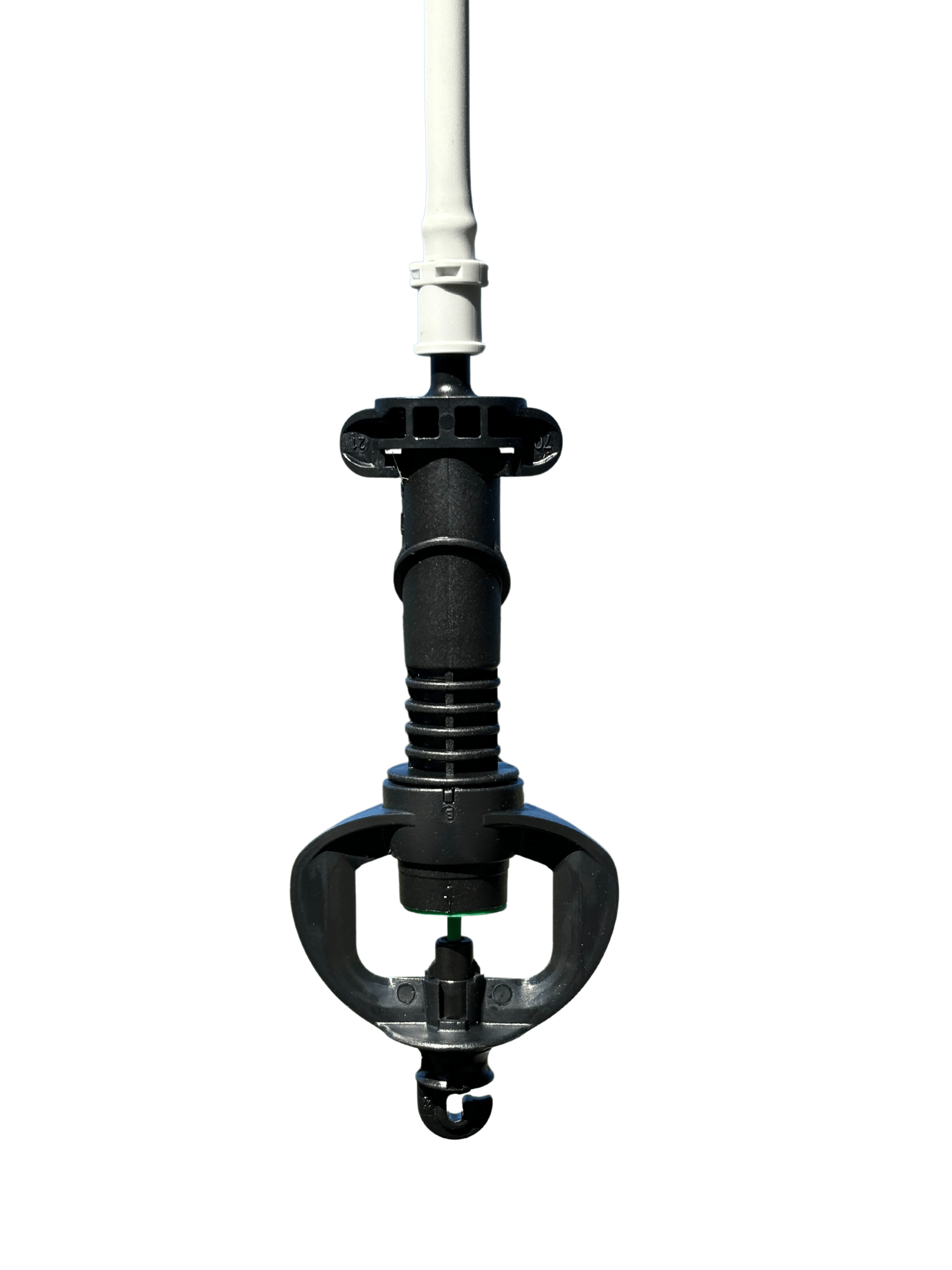

Featuring a unique “upside down” rotor, SuperNet™ UDis a flow-regulated micro-sprinkler designed to work suspended from a trellising wire, so you can achieve perfectly uniform water coverage without interference from harvesters and other field machinery.

  • “Upside down” mounted sprinklers keep the ground clear, preventing sprinkler damage by field machinery.
  • Flow regulation mechanism ensures uniform coverage in orchards with uneven terrain.

Application

  • Irrigation
  • Frost mitigation
  • Orchards cooling
  • Orchards humidification
  • Leaves Dust cleaning

Pressure

  • Medium pressure
  • Low Pressure

Coverage type

  • Localized

Crop type

  • Orchards

Trajectory angle

  • Low

Why Macadamia Sprinkler?

  • Pressure compensating : Ensures every tree gets an even measure of water and nutrients, no matter the sprinkler's inlet pressure (within specific pressure ranges)
  • Improved distribution pattern: Enhanced vertical hanging for improved droplet uniformity and distribution
  • Low-impact installation and maintenance: Reduced time and labour costs, allowing resources to flow back into your business
  • Quality Accessories: A unique sprinkler dropper designed to ensure a flat trajectory
  • Machinery-safe: Unique“upside down” rotor enables sprinklers to be operated in a hanging position, preventing damage caused by field machinery.
  • Clogging resistance: Water passage - 30% larger than industry standard - protects against clogging to ensure an optimal water pattern, year after year.
  • Insect-protected, even upside down: Specially designed spring bearing ensures the anti-ant mechanism can prevent insect penetration to the nozzle, even when the sprinkler is mounted from a suspended LDPE/lateral .
  • Long-lasting: Thanks to a simple modular and clog-resistant design.
  • In-field resilience: Manufactured from tough plastic materials that can withstand agrochemicals, fertilizers, and sun exposure.
  • ISO 8026 standards: SuperNet™ micro-sprinklers meet ISO 8026 standards (SI 1406) with production certified by the SII.

Specifications

  • Flow rates: 50, 70 l/h (other flow rates available)
  • Recommended working pressure: 1.5 to 4.0 bar
  • 2 types of upper bearing available: Upper bearing keeps the anti-ant feature even when sprinkler is mounted upside down; Spring bearing with Everspin™ offers wear resistance in harsh water conditions.
  • Self correcting: Specifically designed dropper to facilitate self-correcting in field



Specifications
