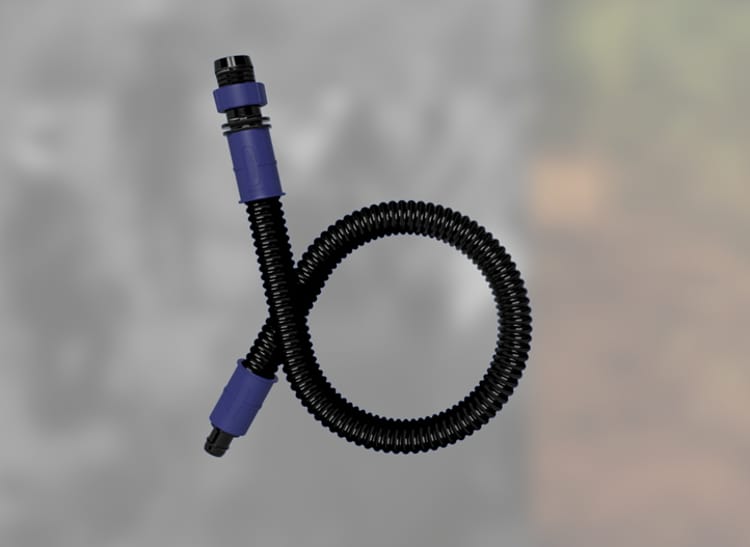

Q-Flex™ riser

Kink-free, preassembled and versatile

Kinked or leaking risers are a weak link in drip system installation – leading to irrigation problems, high labor costs and even crop failure. Q-Flex™ solves this problem.

Q-Flex™ riser provides an ideal solution for connecting driplines to the submain to avoid any kinks and movement even during trench backfilling.

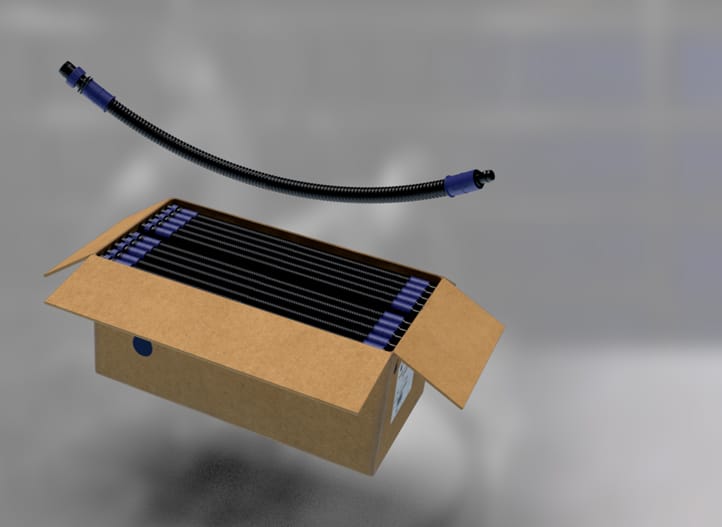

Preassembled with different lengths and connectors for quick and simple installation
Flexible kink-resistant riser provides a trouble-free solution for connecting drip lines to the submain
Eliminates need for re-digging trenches

Why Q-Flex™?

Avoids irrigation problems: Prevent pressure losses or flow restriction with a kink-resistant design.
Lowers operational costs: Saves labor, simplifies and shortens the installation process with pre-assembled riser.
Ready to install: Rapid installation with pre-assembled options.
Tailored to your needs: Configurable for diverse connectors, customizable for connecting Thin, Medium and Thick walled drip lines to PVC, FlexNet™ and PE sub mains.
Built for toughness: High-quality polypropylene material provides UV resistance with minimal elongation.

Specifications

Kink-resistant corrugated profile.
Maximum pressure: 4 bar (0-40ºC).
Minimum kink radius (with buckling): 45 mm.
Elongation < 3% at 4 bar.
Made from UV resistant corrugated Polypropylene.
